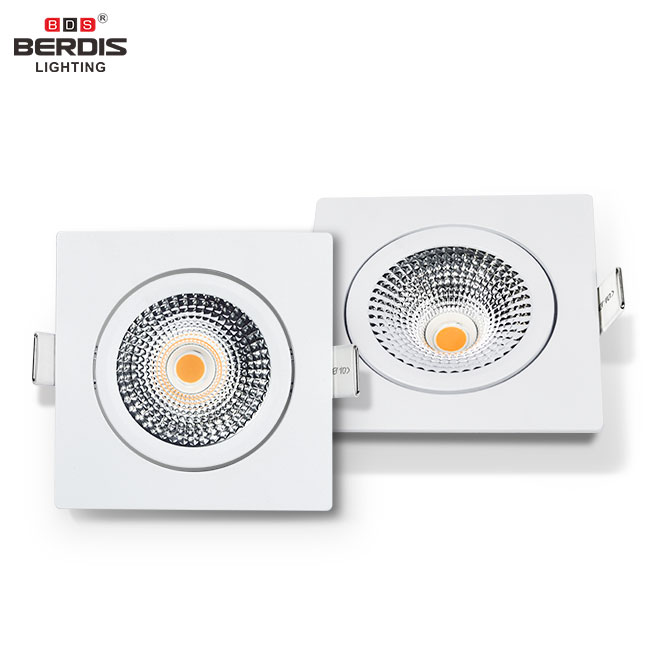

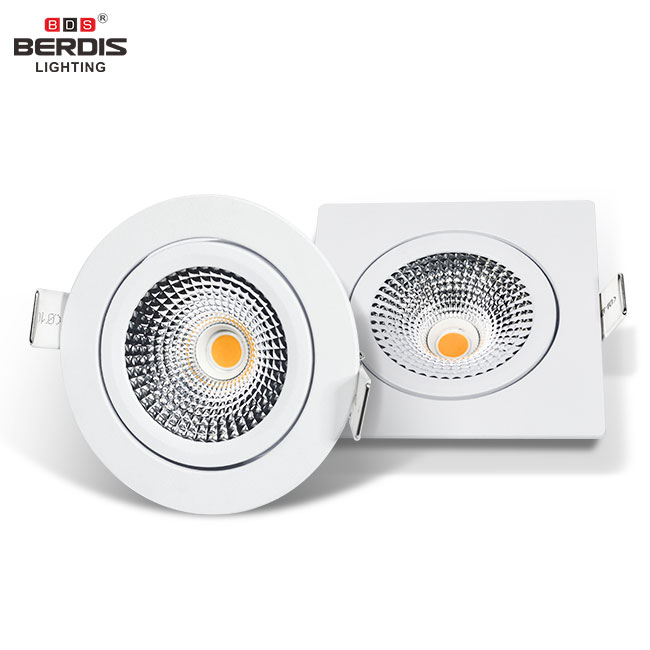

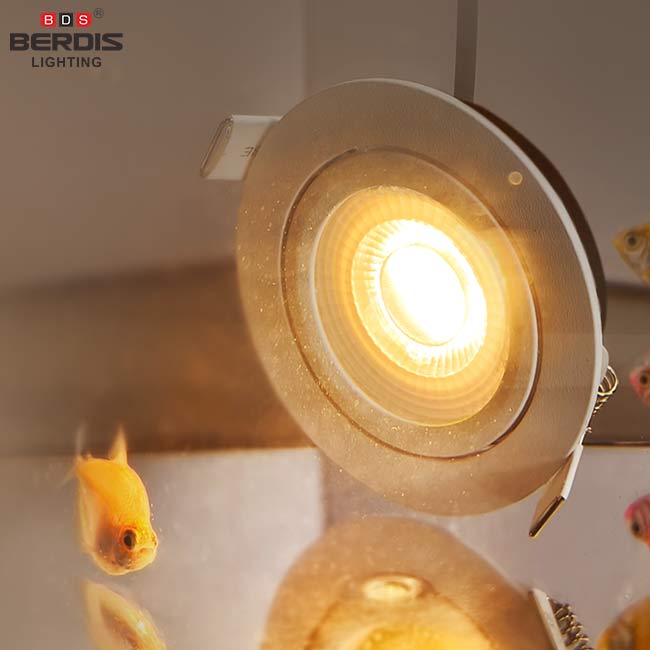

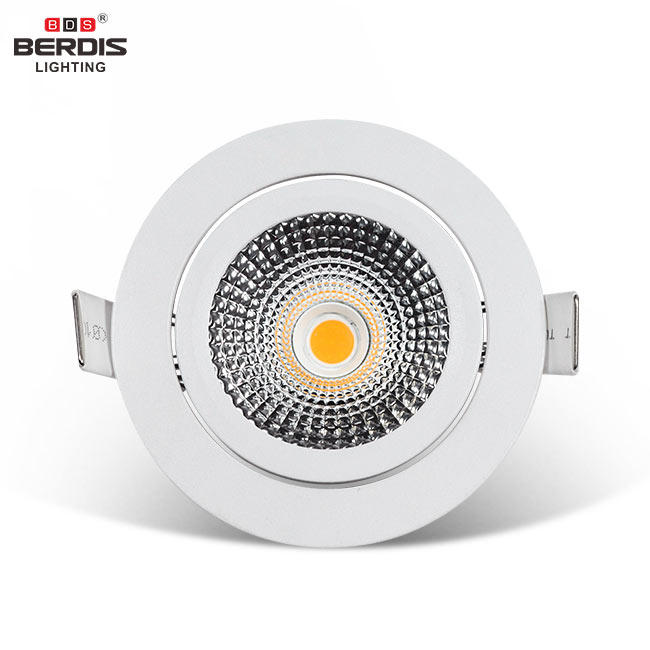

Berdis B0101 super thin 55/68/75/83/90mm cut-out led downlight

●  Private mould,patented product

●  24°、38°、60°  beam angle

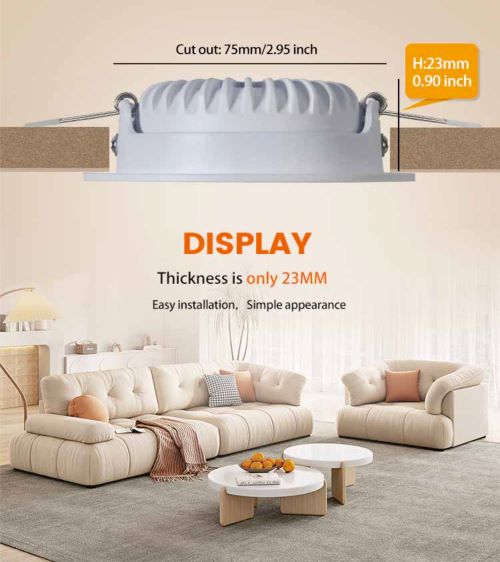

●  Ultra thin ,only 23MM height

● Free from harmful chemicals and substances (RoHS Complaint)

● Three-year/five years warranty

●  Color Option:white,black,nickel brushed

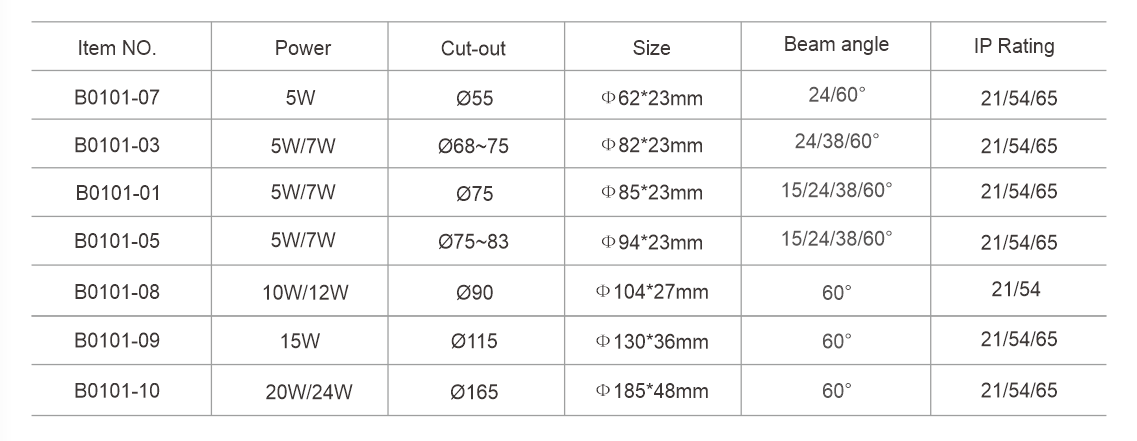

DETAILS

Item NO.
Power
CRI
CCTLED
Beam angle
Dimension
Cut-out
Dimmable
B0101-07
3W
90

2700/3000/4000/

6000K

COB
60°

Φ62*26mm

62*62*26mm



55mm
YES&NO
B0101-035/7W
90/95

2700/3000/4000/

6000K/Dim to warm

COB60°/38°/24°

Φ82*26mm

82*82*26mm



68-75mmYES&NO
B0101-01/2.5F5/7W
90/95

2700/3000/4000/

6000K/Dim to warm

COB60°/50°/38°/24°

Φ85*26mm

85*85*26mm



75mmYES&NO
B0101-055/7W90/95

2700/3000/4000/

6000K/Dim to warm

COB60°/50°/38°/24°

Φ94*26mm

75-83mmYES&NO
B0101-01/3F8/10/12W90/95

2700/3000/4000/

6000K/Dim to warm

COB60°

Φ101*26mm

90mmYES&NO

已通过认证:EMC,RCM,C-TICK,SAA,TUV-CE,TUV-CB

B0101-07



B0101-03

1 B0101-03  68mm开孔.jpg

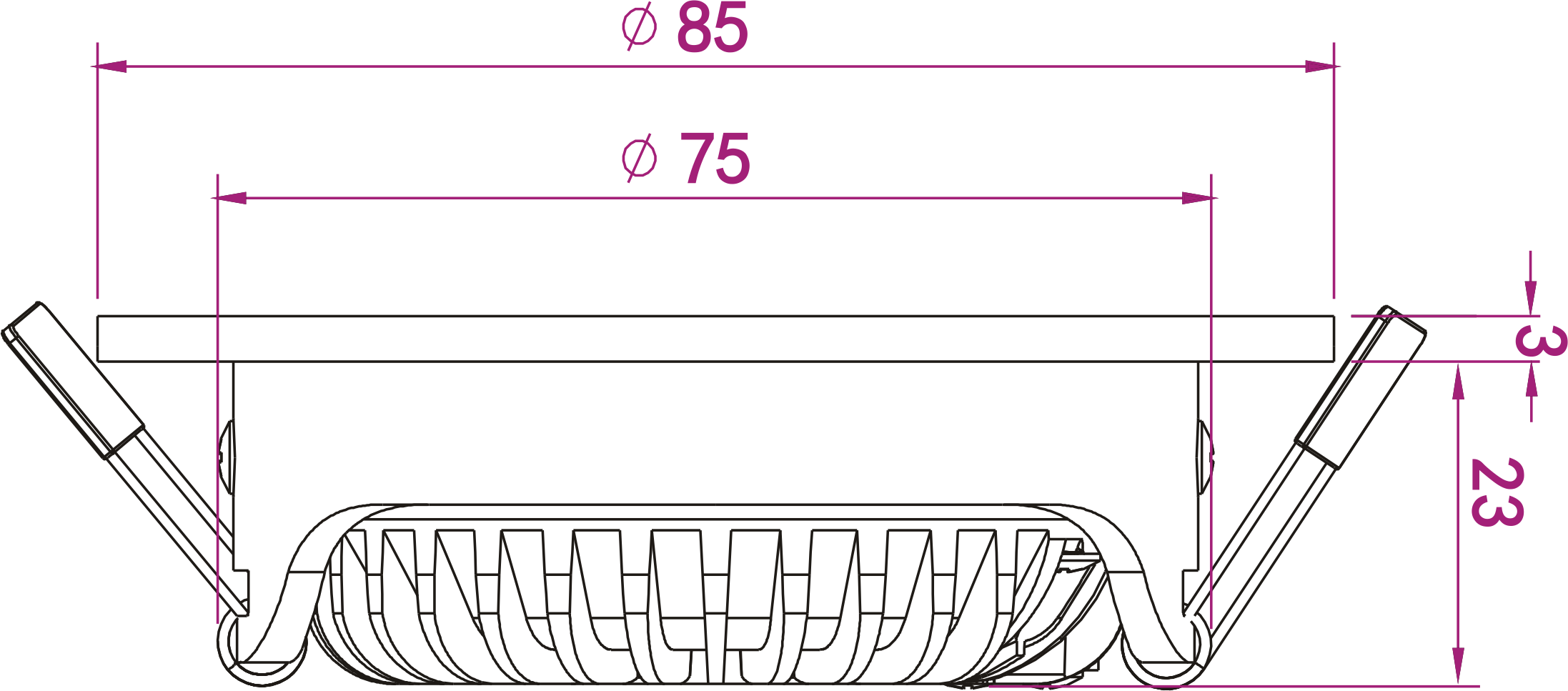

B0101-01/2.5F

2 B0101-01 2.5F 75mm开孔.png

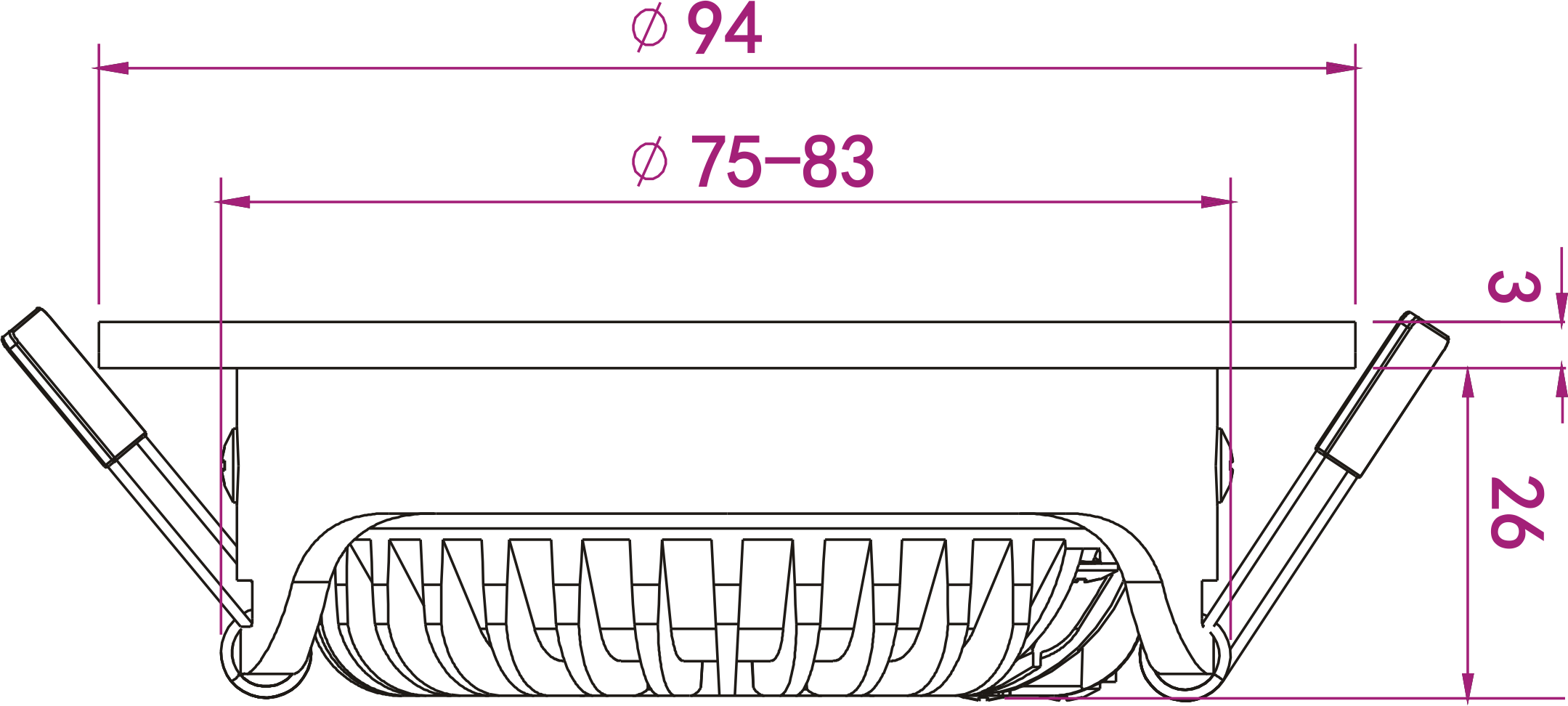

B0101-05

3 B0101-07   75-83mm开孔.png

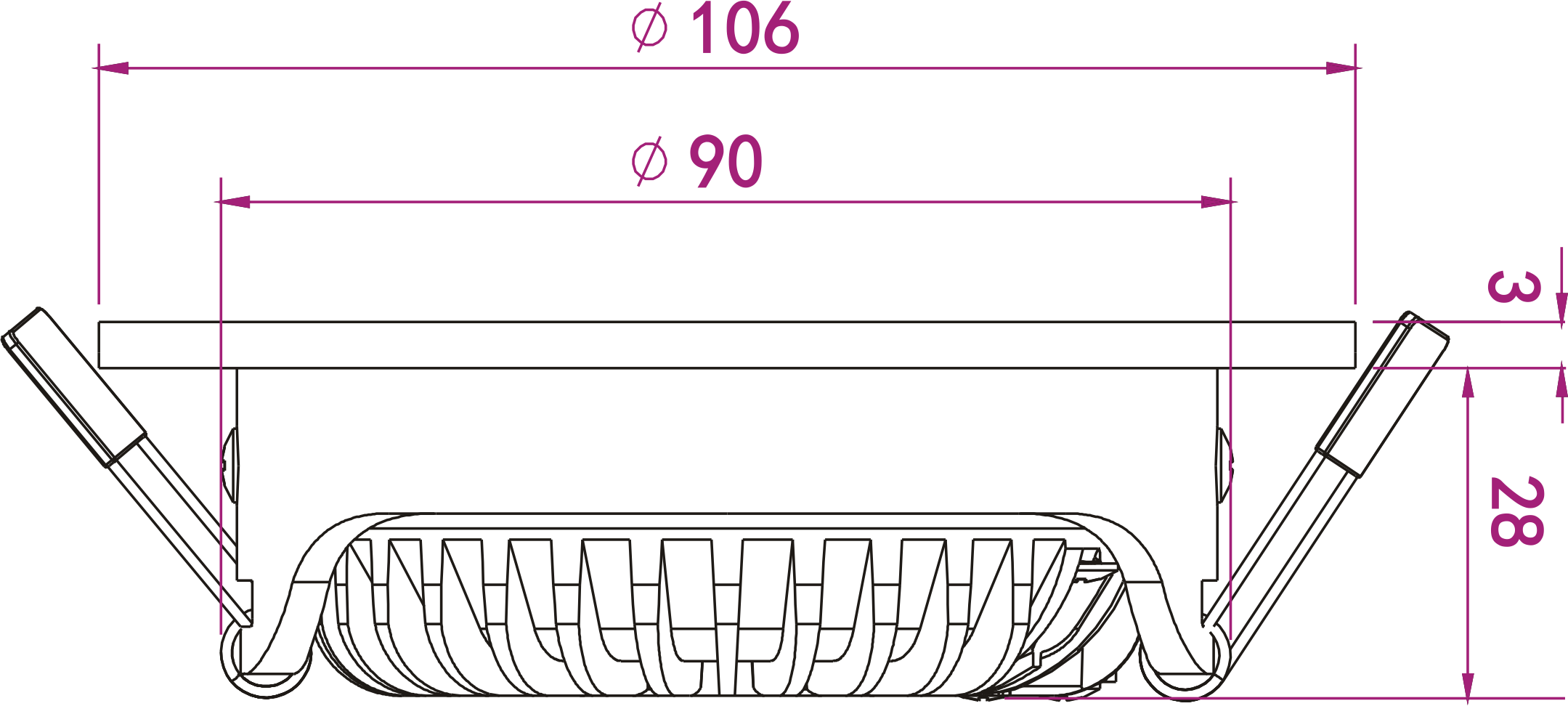

B0101-01/3F

4 B0101-01 3F  90mm开孔.png
